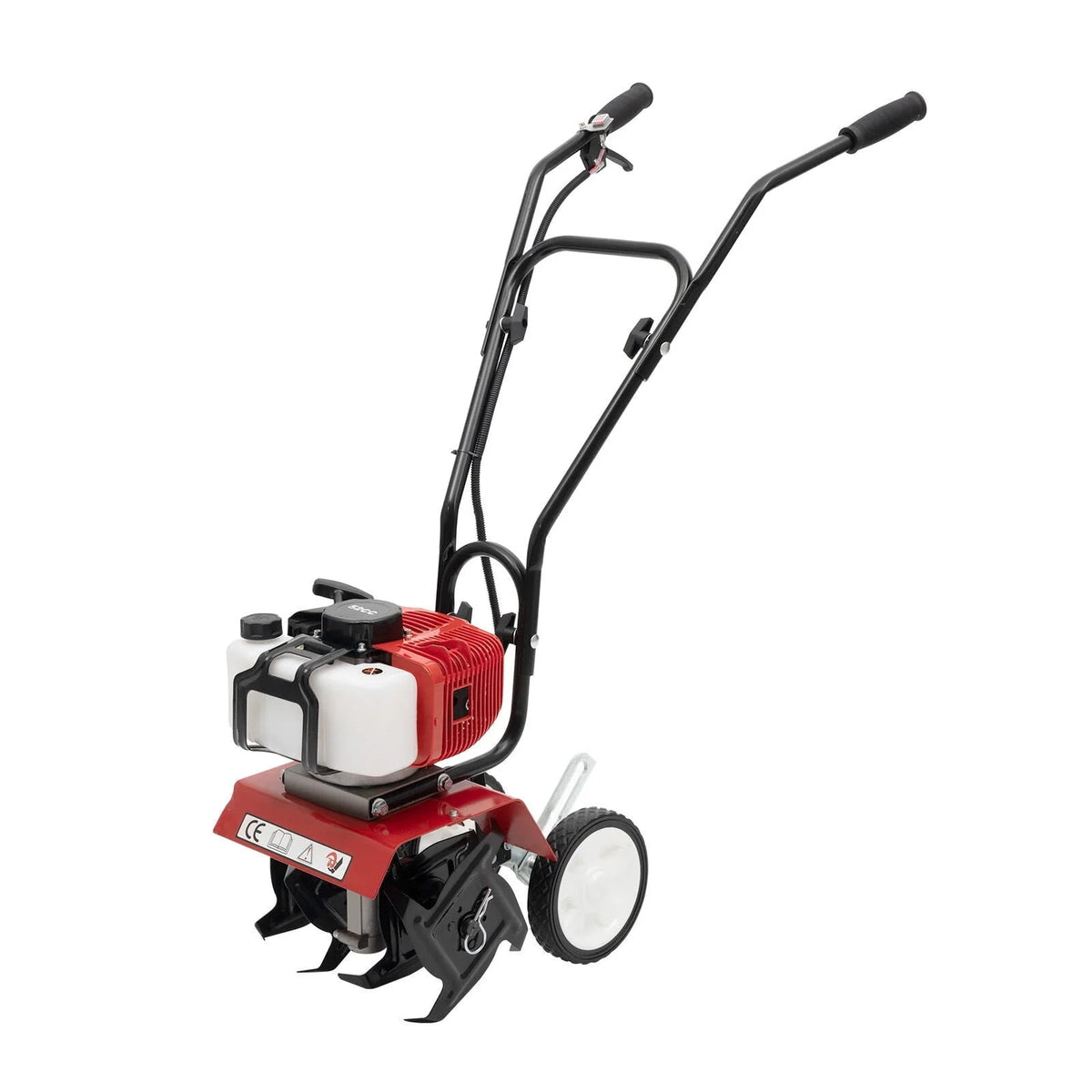

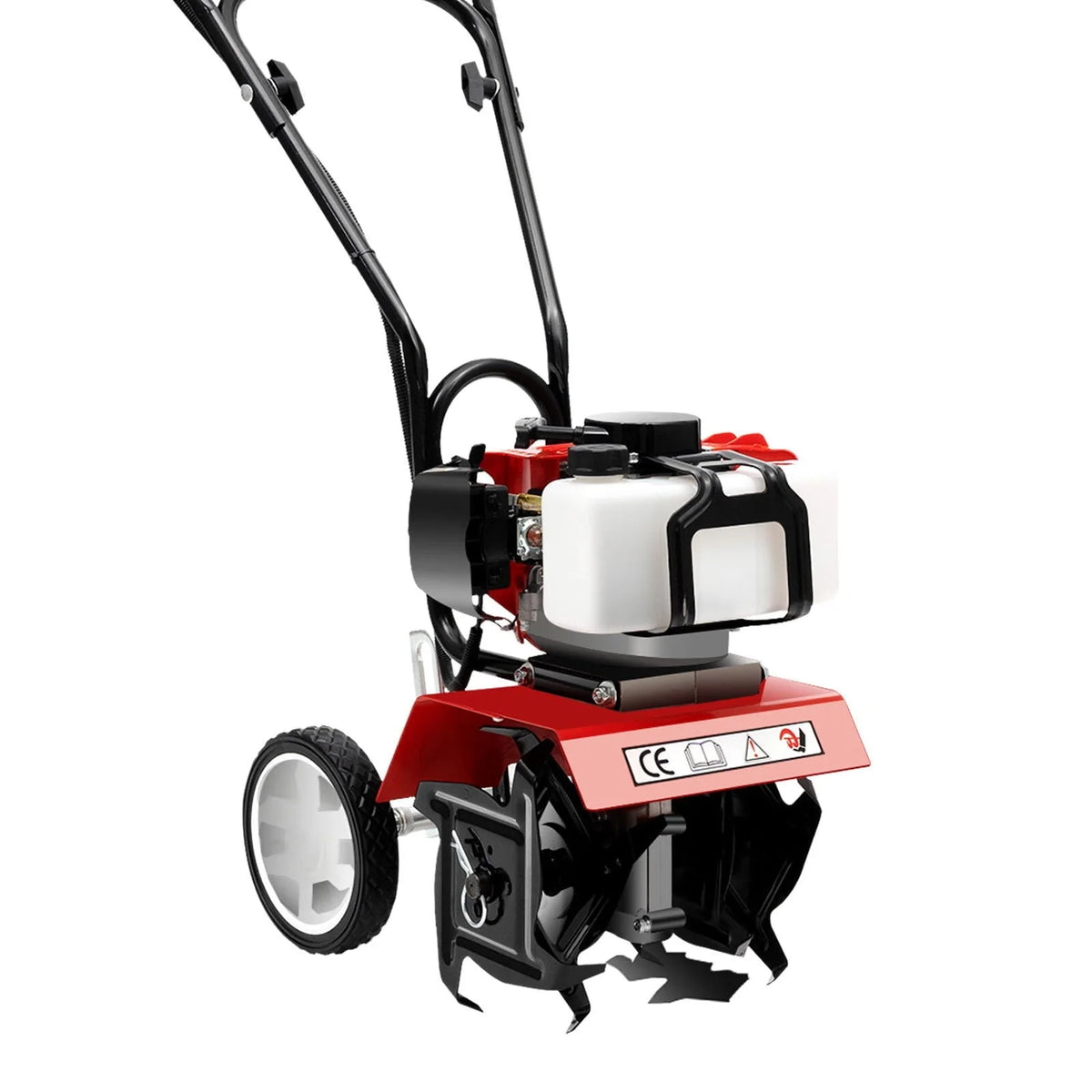

Wuzstar 52CC 2 Stroke Gasoline Engine Rototiller Mini Garden Single-Cylinder Tiller Cultivator

This mini cultivator is very powerful, operating at up to 6500-7000r/min. The high efficiency of the operation allows it to do the tillage and weeding works quickly, which can save your time and energy

This cultivator can be used to plow, turn the soil, open furrows, weed, etc. It is suitable for use on farms, orchards, gardens, mountains, yards, fields, etc

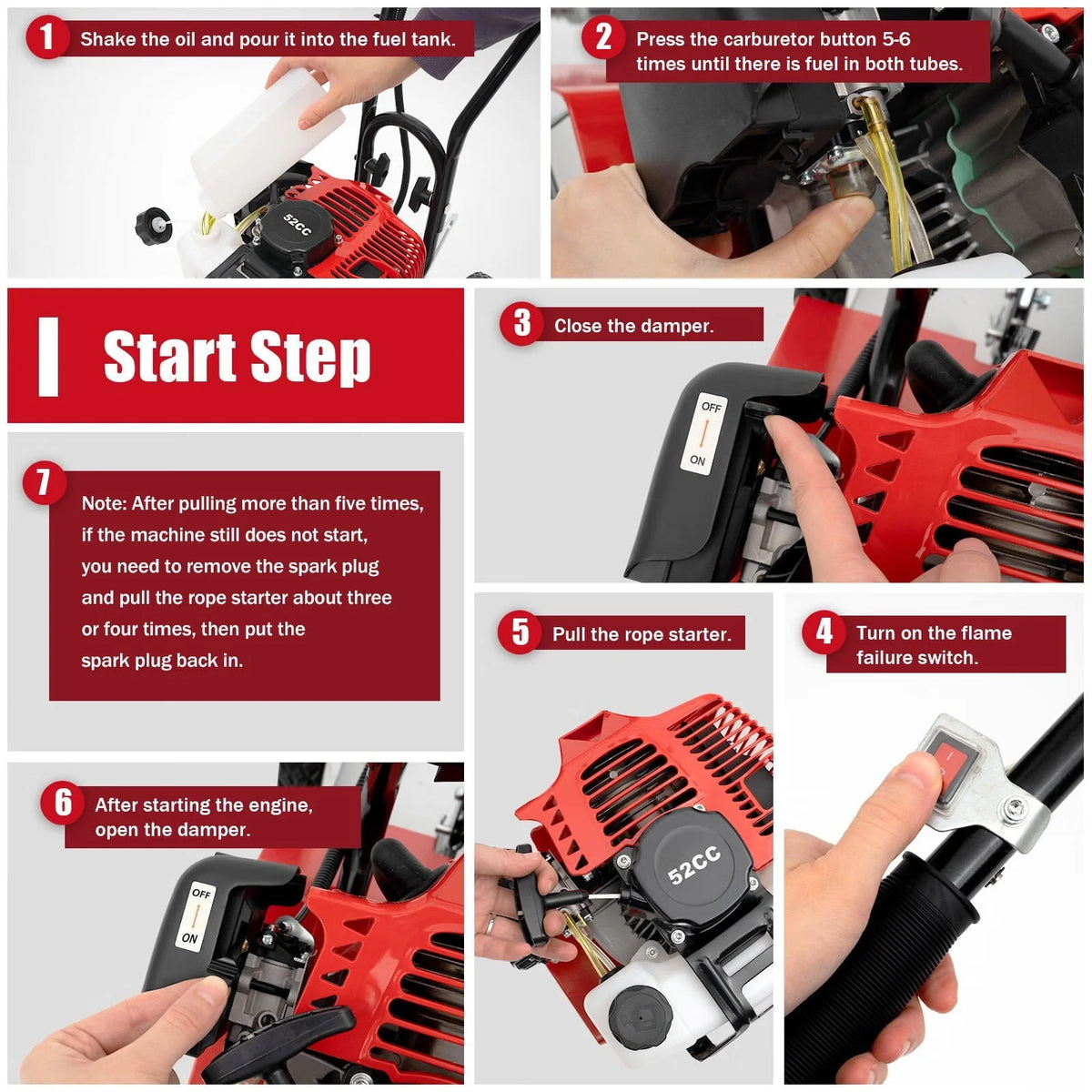

Start Step：

1.Shake the oil and pour it into the fuel tank

2.Press the carburetor button 5-6 times until there is fuel in both tubes

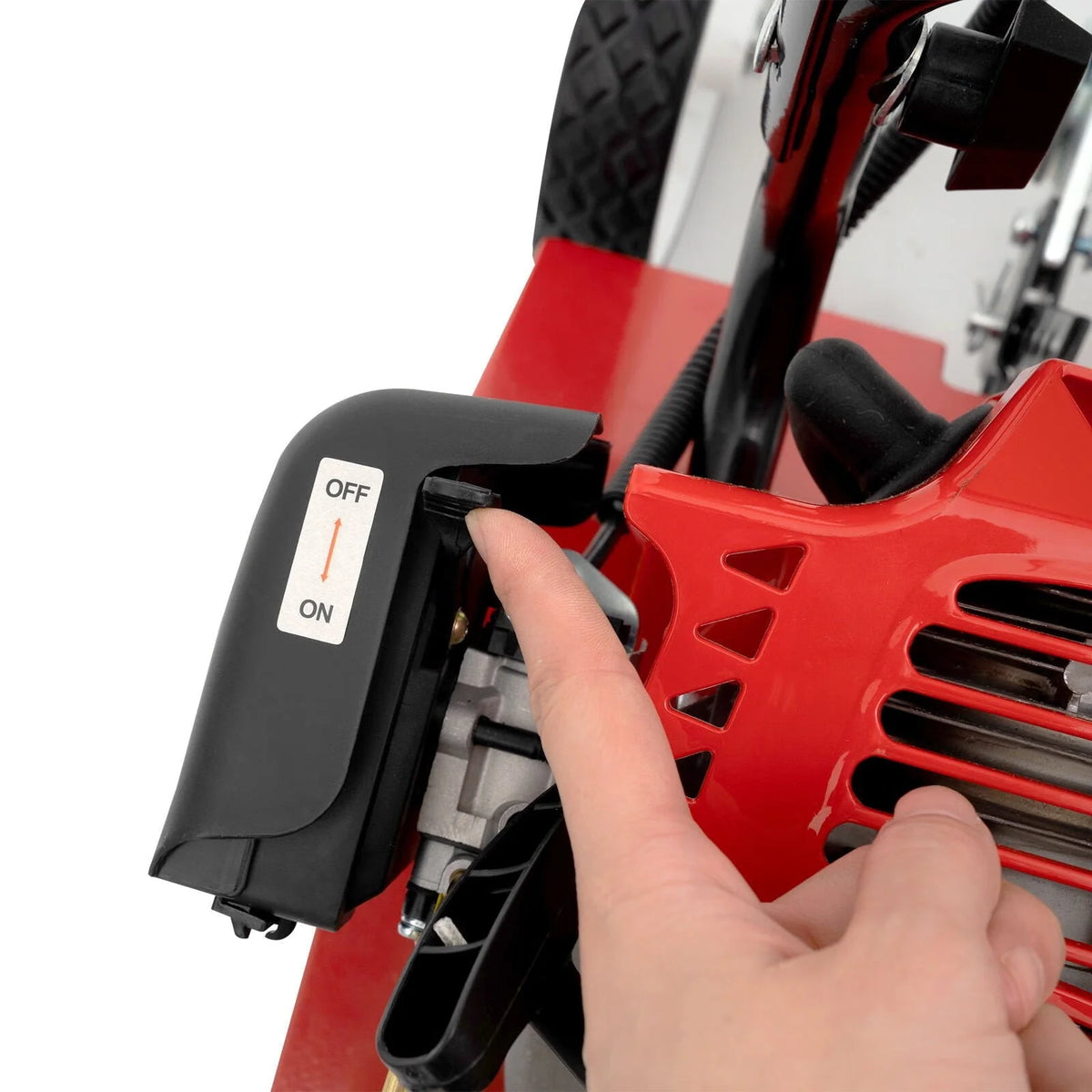

3.Close the damper

4.Turn on the flame failure switch

5.Pull the rope starter. (After pulling more than five times, if the machine still does not start, you need to remove the spark plug and pull the rope starter about three or four times, then put the spark plug back in.)

6.After starting the engine, open the damper

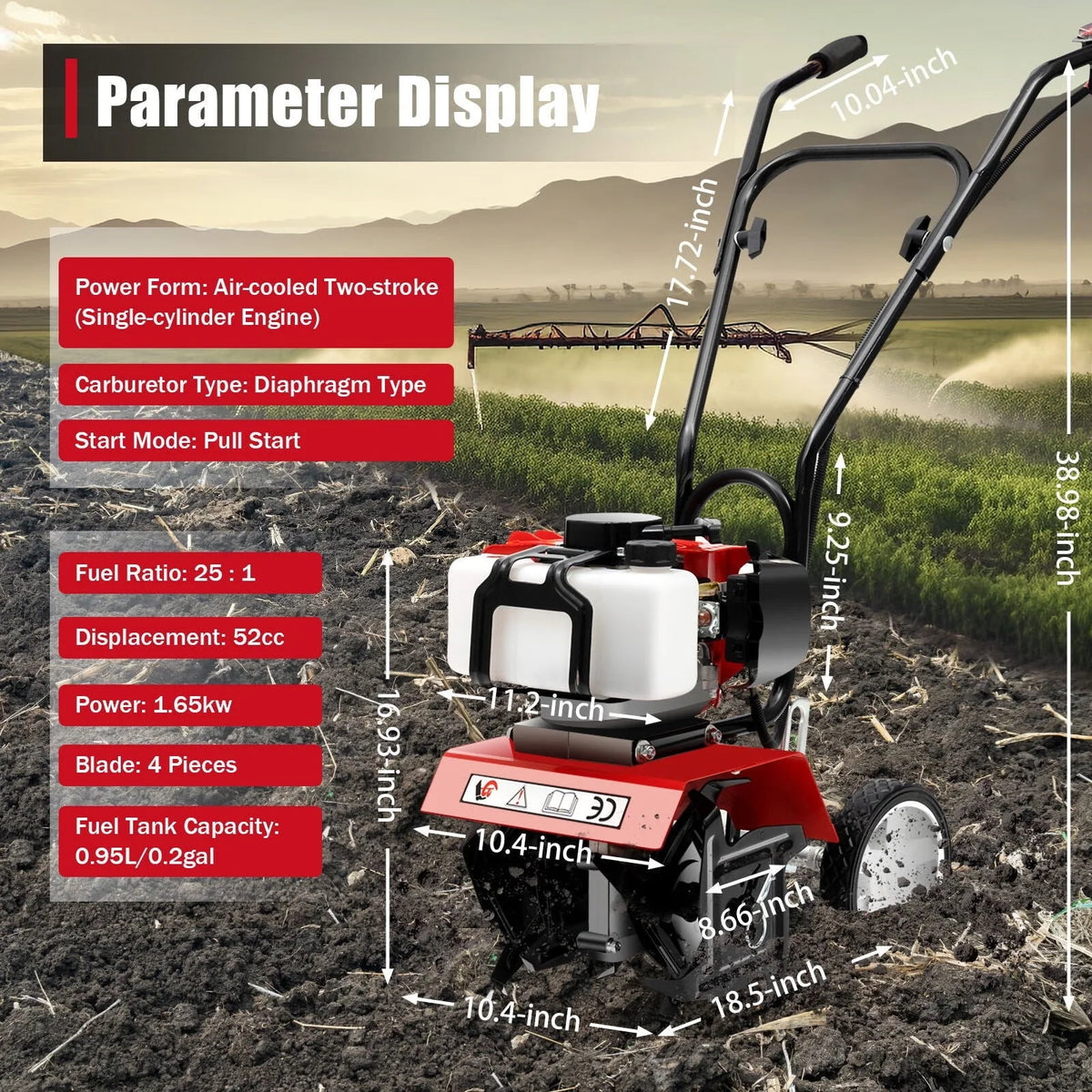

Specification：

Material: Manganese Steel, Iron, Rubber, Plastic

Rated Speed: 6500-7000r/min

Power Form: Air-cooled Two-stroke (Single-cylinder Gasoline Engine)

Displacement: 52cc

Fuel Ratio: 25 No. 93 Gasoline: 1 Engine Oil

Power: 1.65kw

Carburetor Type: Diaphragm Type

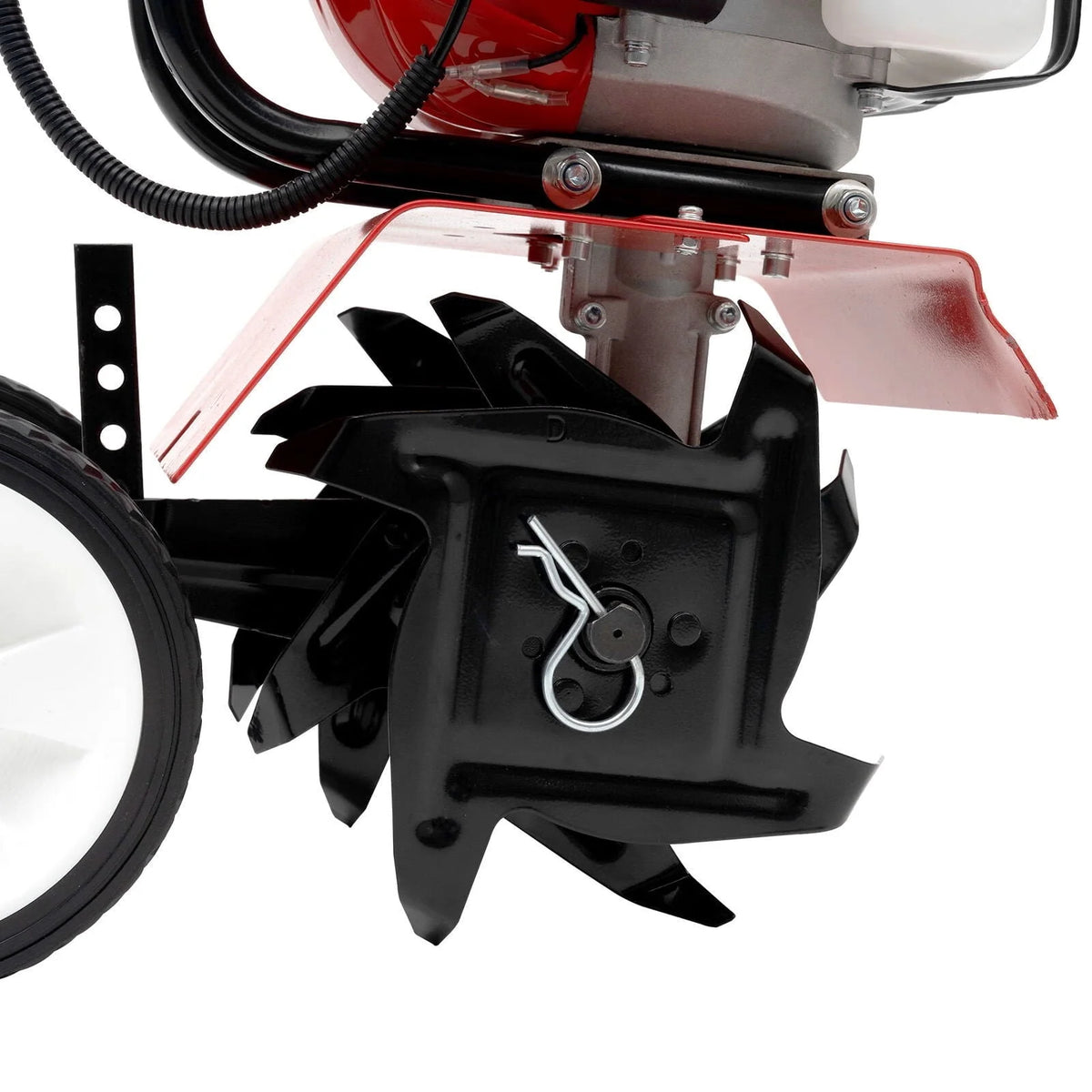

Blade: 4 Pieces

Start Mode: Pull Start

Blade Diameter: 22cm/8.66inch

Tillage Width: 30cm/11.81inch

Tillage Depth: 3-10cm/1.18-3.94inch

Individual Operation Bar Length: 94cm/37inch

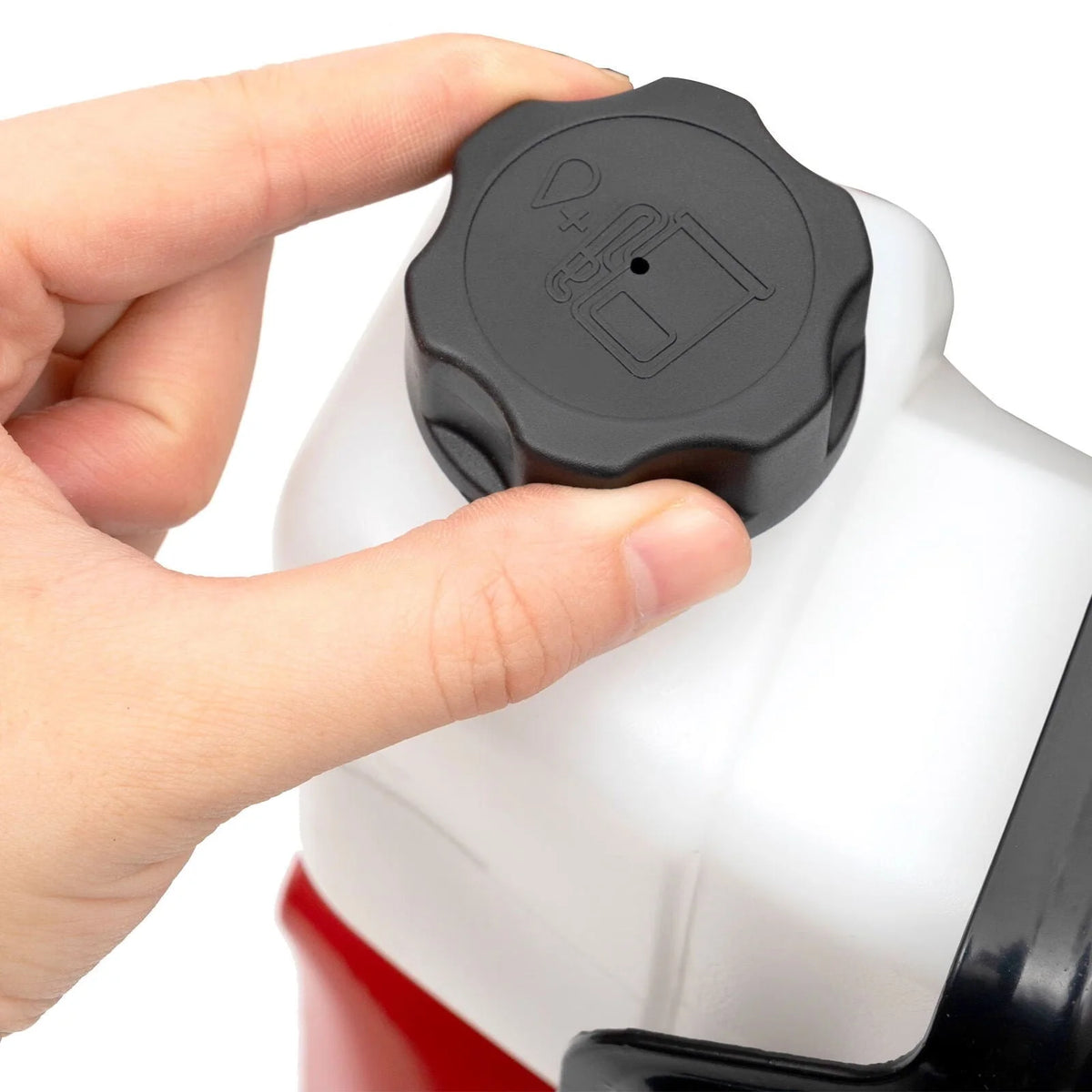

Fuel Tank Capacity: 0.95L/0.2gal

Engine Size: 28*25*43cm/11.02*9.84*16.93inch

Mudguard Width: 25.5cm/10.04inch

Gross Weight: 14.85kg/32.74lbs

Net Weight: 13.69kg/30.18lbs

Package Size: 48.5*47*31.5cm/19.09*18.5*12.4inch

Product Size: 47*25.5*99cm/ 18.5*10.04*38.98inch

Package Included：

1 * Mini Tiller Cultivator

1 * English Manual

All Accessories for Assembly

Notes：

1.Please be careful to use two-stroke oil for garden machinery, not four-stroke or other oils, as this can quickly cause serious damage to the internal parts of the engine

Please allow the slight color difference caused by the shooting chandelier and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering
