Oukaning 2Stroke 18HP Outboard Motor Fishing Boat Engine Motor Water Cooling CDI Ignition

Cylinder Scoring Is a Serious Damage,Which Caused by Improper Use and Will Cost You a Lot of Money to Repair the Motor.

Must Read Before Using!

Two Stroke 18 Hp:

Firstly, Fill the Gear Oil (Open Gear Box Lid and Fill It).

Secondly, Fill No. 92 Petrol, Lightly Press Oil Pump 6-10 Times.

Thirdly, Fill Engine Oil Don't Exceed the Head of the Pattern.

Forthly, Turn the Throttle to the Start up and Turn the Accelerator Gets up to 50%.

Then, Rapidly Pull the Starter Line.

After the Motor Start, Please Turn the Throttle to Running State.

Then, It Can Be Operated Now.

Don't Do the Following Will Avoid Cylinder Scoring:

1，Start the Motor in the Water

2, Use the Motor When It Stop Cyling Water

Even If You Want Test the Motor, It Should Be Done in the River!

When There Is No Water Coming out from the Motor,Please Stop Using It Immediately ,Then Check the Impeller of Water Pump or Check If the Water Outlet Has Been Blocked.

About Certification:

We Can Only Provide Ce Certification, There Is No Other Certification Can Be Provided,Thanks for Your Understanding.

Several Issues with This Motor First the Linkage That Goes from the Gear Selector to the Starting Rope to Block the Rope to Be Pull When the Motor Is in Gear Was Unattached , and Still After Fixing It Every Time You Go into Any Gear It Gets Unattached Second, the Starting Rope Doesn't Retract All the Way When You Attend to Start the Engine

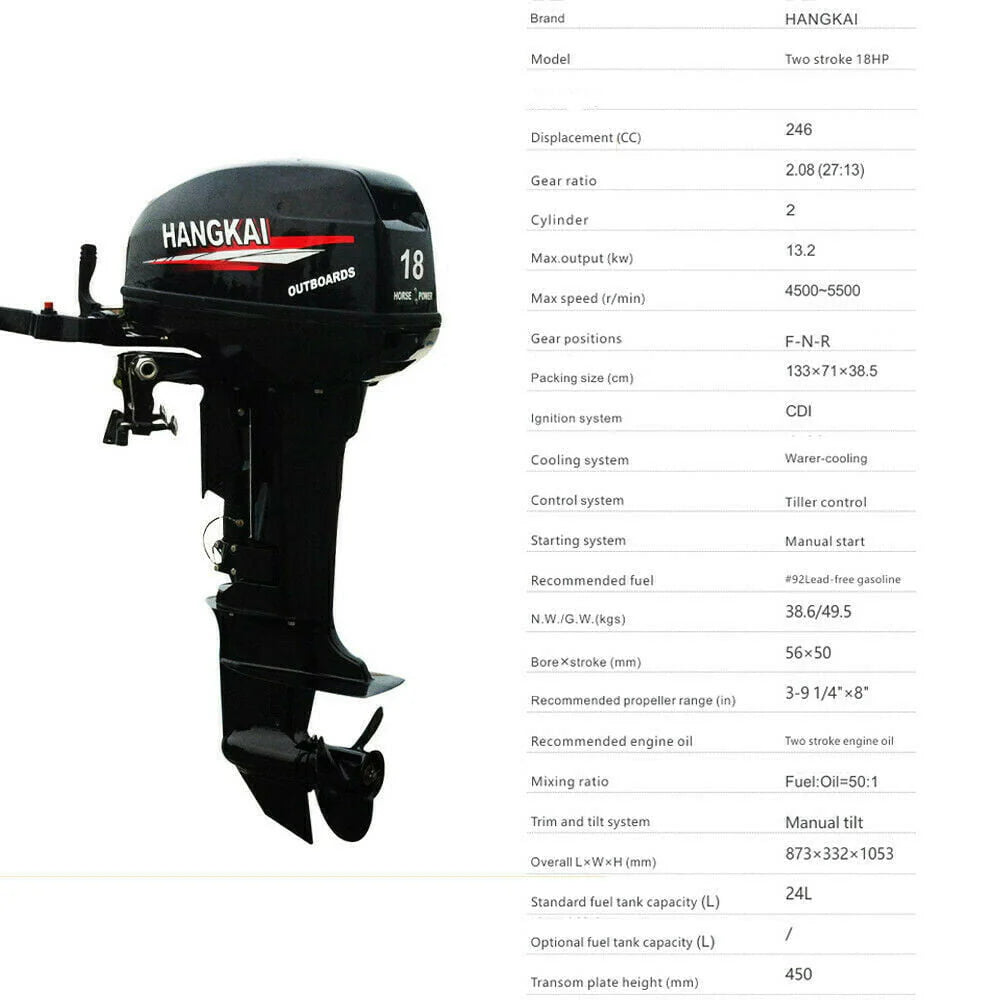

Displacement: 246cc

Short Shaft ：40cm

Gear Ratio: 2.08(27:13)

Cylinder: 2

Max.output(Kw): 13.2

Max.speed(R/Min): 5000-6000

Gear Positions: F-n-r

Packing Size: 133x71x38.5cm

Ignition System: Cdi

Cooling System: Water-cooling

Control System: Tiller Control

Starting System: Manual Start

Control System: #93 Gasoline

N.w./G.w.(Kgs): 38.6/49.5

Bore X Stroke(Mm): 56x50

Recommended Propeller Range: 3 -9"1/4''X8"

Recommended Lubricant: 2 Stroke Lubricating Oil

Mixing Ratio: Fuel:oil=50:1

Trim and Tilt System: Manual Tilt

Overall Lxwxh(Cm): 78.3x33.2x105.3

Standard Fuel Tank Capacity: 24l

Note:If you have any problems with the quality of the goods you can contact us.
