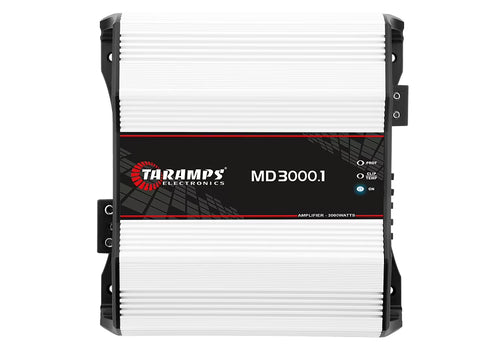

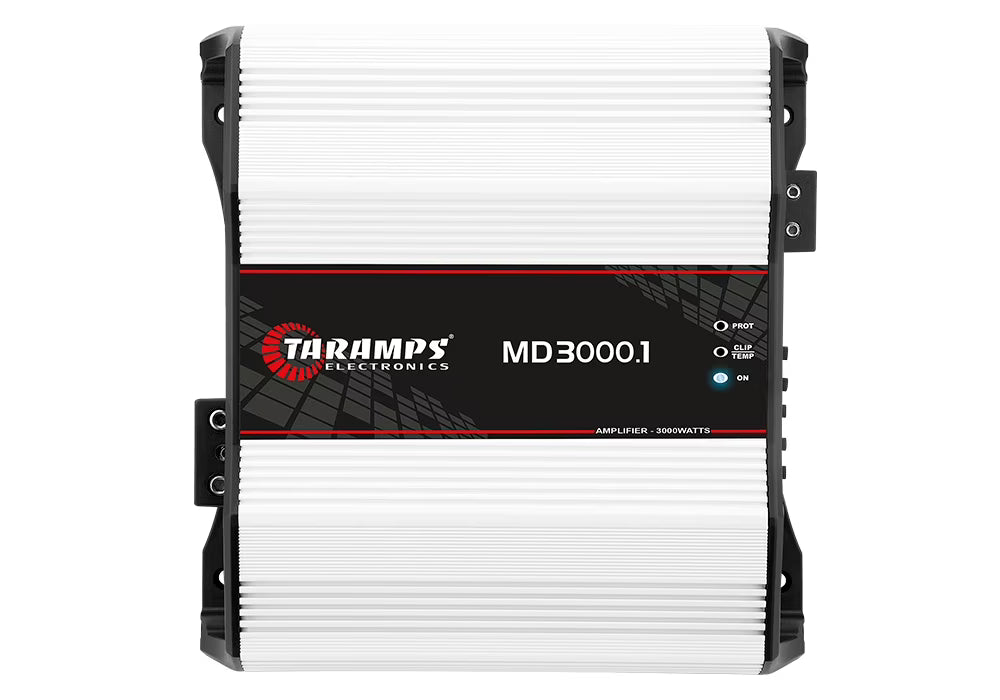

Taramps MD 3000.1 4 Ohms 3000 Watts Amplifier

Taramps MD 3000.1 4 Ohms 3000 Watts Amplifier

Quality Guarantee

Easy to Return

100+ Customer Review

Secure payment

$39.25
$39.25 $88.06
SAVE 55% Sold out

add_shopping_cart

-

Ordered

local_shipping

- - -

Order Ready

redeem

- - -

Delivered

Taramps MD 3000.1 4 Ohms 3000 Watts Amplifier

Taramps MD 3000.1 4 Ohms 3000 Watts Amplifier

$39.25
$39.25 $88.06
SAVE 55% Sold out

The MD 3000.1 4 OHMS amplifier module, is carefully designed with the highest technology, and high performance for automotive sound systems. It is a mono amplifier and its maximum power is 3000W RMS with 4 OHMS impedance, and one 3000w RMS channel. The MD 3000 is FULL RANGE this way you appreciate all the frequencies in the right measure.

OPERATION CLASS Class D
NUMBER OF CHANNELS 01
MAXIMUM POWER @ 12,6 VDC - 4 OHMS: 3000W RMS
@ 12,6 VDC - 8 OHMS: 1920W RMS
INPUT SENSITIVITY 220 mV
SIGNAL TO NOISE RATIO >90dB
FREQUENCY RESPONSE 10Hz ~ 18KHz (-3dB)
CROSSOVER HIGH PASS (HPF) 10Hz ~ 90Hz (-12dB/8a) Variable
CROSSOVER LOW PASS (LPF) 90Hz ~ 18KHz (-12dB/8a) Variable
BASS BOOST 0 ~ 10dB (50Hz) Variable Frequency (35 ~ 55)
EFFICIENCY 85%
INPUT IMPEDANCE 15K Ohms
OUTPUT IMPEDANCE 4 OHMS
PROTECTION SYSTEM Short-Circuit to Output, Short on output compared to GND, Low impedance at output, low/high supply voltage and Thermal protection.
MIN. SUPPLY VOLTAGE 9VDC
MAXIMUM POWER SUPPLY VOLTAGE 16VDC
CONSUMPTION AT REST 1.2 A
MAXIMUM MUSIC CONSUMPTION 138.8 A
MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL 277.7 A
DIMENSIONS (H X W X D) MM 8.98" x 2.76" x 8.58"
WEIGHT 5.5lb
EAN 7898556844666



MD 3000.1 4 Ohms 3000 Watts Amplifier
